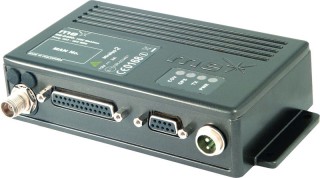

The me-D400 is a high power RF transceiver designed for use in Mobitex network applications.
- Proven reliability in vehicle and static applications
- Automatic TX power to 10Watts
- MISSION critical Data only application
- Fully CE and VCA vehicle certified
- Use in public transport and traffic signal management systems and ATM’s etc
- I/O’s for switching and monitoring and remote control
- Public & Private networks
- Extensively used in the Emergency Service sector
me-D400 is sold throughout the world where Mobitex networks are already established and a proven success. To find out more about Mobitex public networks or establishing a private network contact sales@mobile-expertise.co.uk.
Product Specification
| General | |
|
|
|
| Frequency range: | 405 to 465 MHz Transmit and Receive |
|
|
|
| Channel spacing: | 12.5kHz |
|
|
|
| RF Output | 10W max +/-2dB |
|
|
|
| Modulation | Modified GMSK |
| F1D | |
|
|
|
| Interfaces: | DC, RS232 by 9 pin D-type, Data input/output by 25 way D-type |
| RF by TNC female | |
|
|
|
| Electrical | |
|
|
|
| Power supply: | 12VDC nominal, 10.8VDC minimum, 15.6VDC maximum |
|
|
|
| Current consumption: |
TX 2.6A at 10W output, 1.8A at 5W, 0.9A at 1W RX 180mA RS232 9 pin D-Type (230mA using 25way D-Type) Values based on 12V |
|
|
|
| Transmitter | |
|
|
|
| Carrier power: | 0.1 - 10W software controlled |
|
|
|
| Receiver | |
|
|
|
| Sensitivity (1 in 100 bit error rate): | <-113dBm (nominal) , <-110dBm (extreme) |
|
|
|
| Channel switching time: | <30mS |
|
|
|
| RSSI / Signal strength indication: | -113dBm to -63dBm |
|
|
|
| Environmental | |
|
|
|
| Operating temperature: | -30 deg C to +60 deg C |
|
|
|
| Enclosure: | IP54 rated |
|
|
|
Specifications are subject to change without notice and range will vary depending on the topography and the surrounding environment. Figures above are typical and measured under normal operating conditions. As such they will not form part of any contract. Our policy is one of continuous improvement and we reserve the right to change product specifications without notice.
